Lead Design Architecture and Building Services

ROCHE LIM MANNHEIM

3D-Visualisierung © Roche LIM Mannheim

The broad modularization of all constructions enabled prefabrication and thus rational construction.

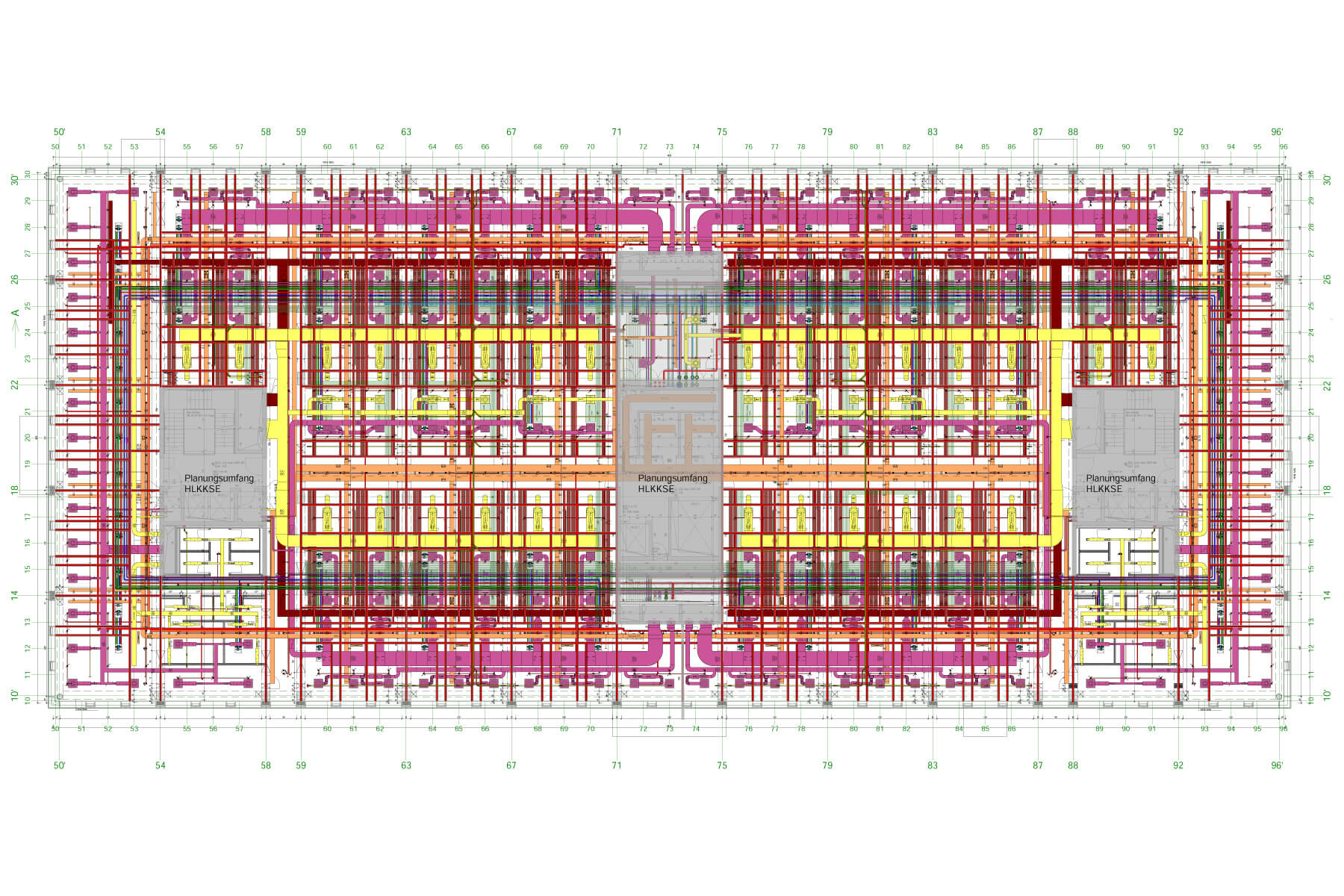

Integrated Building Services Layout

Our role in planning varied over the project phases. In the CD (Concept Design) and BD (Basic Design) phases, the design concept of ‚Building for the next user‘ was established. In this planning concept, all facets of the building model (structural design, architecture) as well as the services and technical utilities are encorporated. In this way, the design process is controlled from the inside out with the following criteria in the forefront:

  • starting with the inception of the project, a systematic integration of all aspects of construction disciplines within the project.
  • modularisation of the majority of constructive tasks, thereby reducing complexity and enabling prefabrication.
  • systematic division between basic fit-out/installation and user fit-out/installation with clearly defined interface and transfer points
  • clear definition of configuration restrictions (geometry and interface)
  • database supported design (BIM)

The first stage of the planning was developed on the basis of interdisciplinary interior structural specifications.
The final detail design plans and all preliminary tasks in the DD phase were executed individually by the architectural, structural, technical building service planners and integrated into a modular overall model, consisting of technical construction plans as well as compiled data. A construction manager oversees the process on behalf of the developer.

3D Visualization © Roche LIM Mannheim

Solutions
Lead Design Architecture and Building Services, Integrated Building Services, Modularisation, Database Driven Design, Support System, Prefabrication, Internet Based Project Server

Project Data

Location
Mannheim

Client
Roche Diagnostics GmbH

Architect Design
digitales bauen

Architect Detailed Engineering
Schmidt & Schmidt Architects

Gross Total Area
27,310 qm

Costs
70 M €

Levels
9

Service Period
2012 – 2016

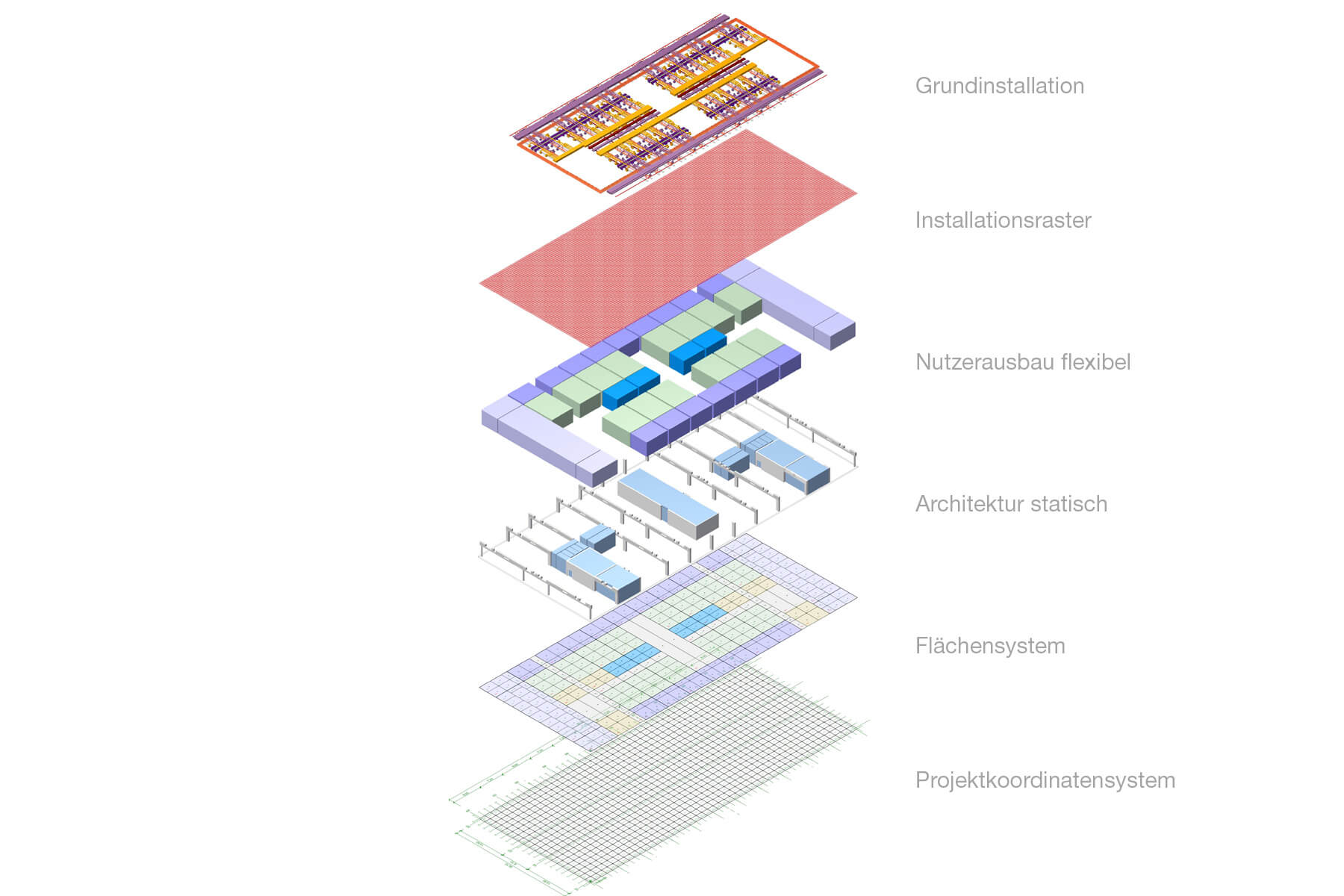

Horizontal and vertical integration of all subsections and components

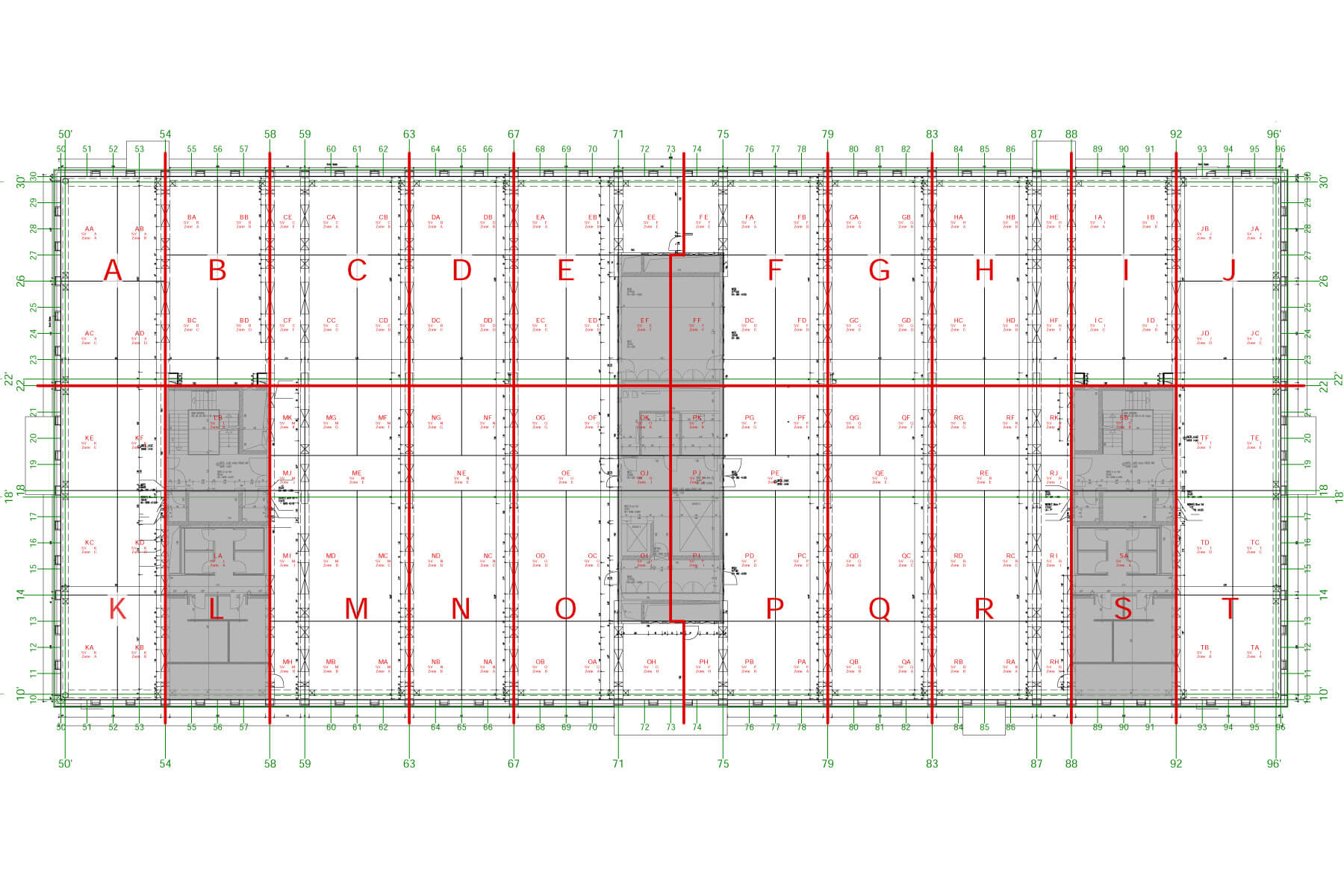

Project grid with area identification

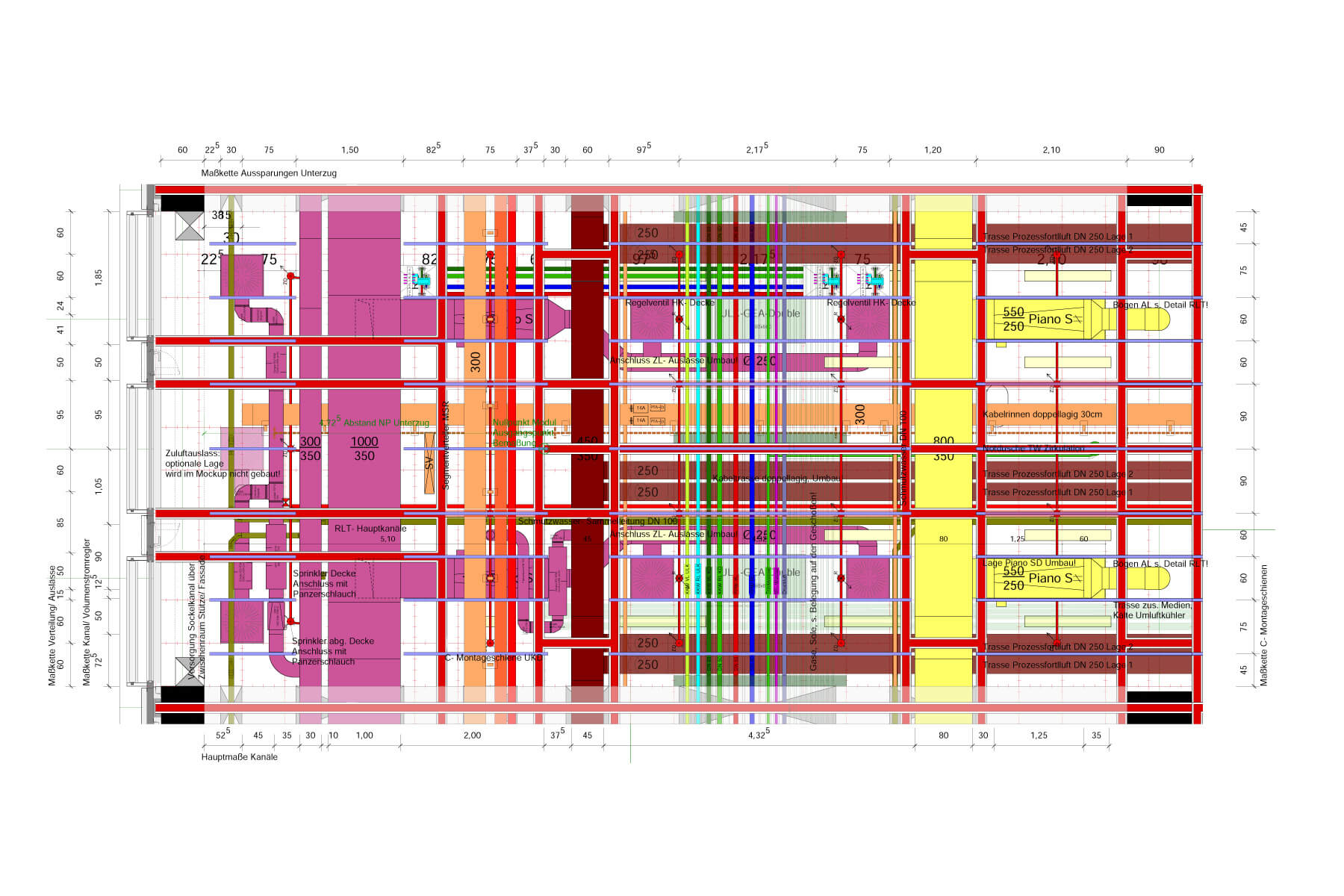

Common Detail

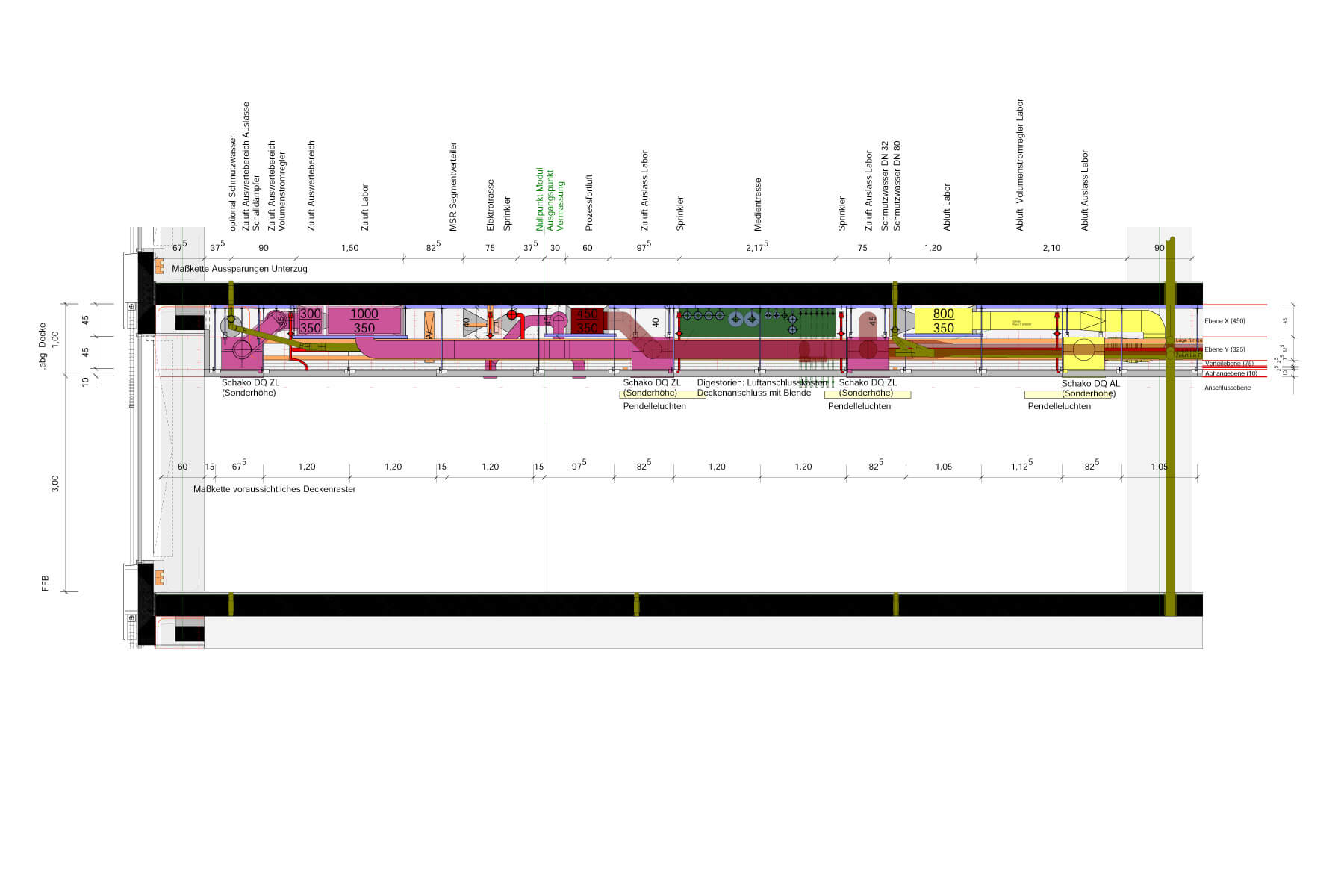

Common Detail Section

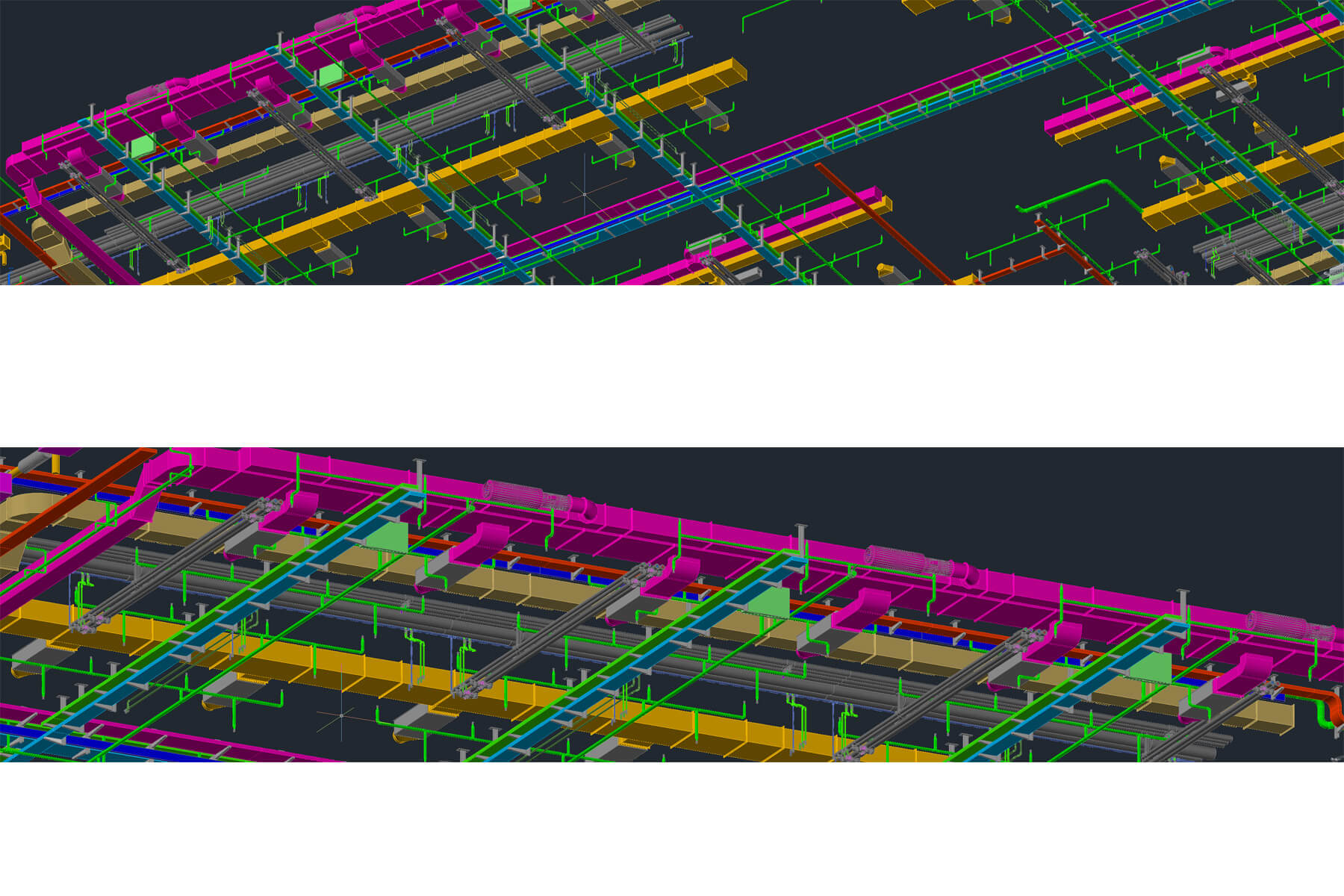

3D MEP Detailed Engineering

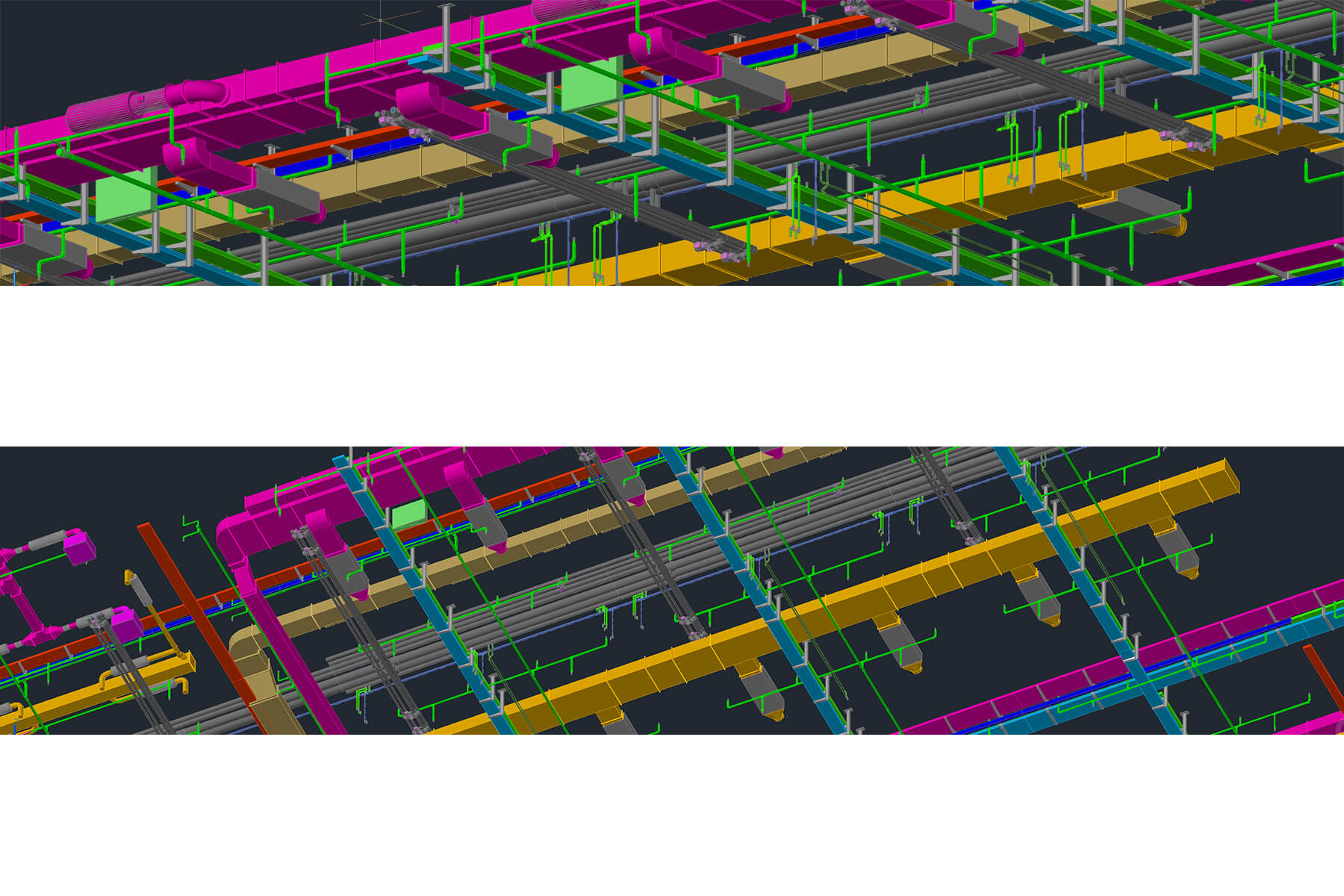

3D MEP Detailed Engineering
