CAD CAM Support System, Microsoft Headquarters Germany Munich

CAD CAM support system
build as planned

Integrated Building Services Ceiling, IT-Port Munich-Unterschleißheim

Interdisciplinary route management
Integrated ceiling mounted ducting routes were designed for two projects in Munich-Unterschleißheim – Microsoft German Headquarters and Serono IT Port. The duct route frames and pipe casings were combined into one, comprehensive and integrated task. These could be affordably prefabricated out of non-specialised sheet metal using standard tooling machinery. The overall costs were approximately 30% lower than similar example projects.

Avoid conflicts on the construction site
All attachment points in the routing frames are predefined and therefore each separate utility has a clearly defined space, thereby eliminating clashes during construction.

Categories
CAD CAM Support System
Integrated Building Services
Prefabrication
Build as planned

Projects
Microsoft German HQ
IT Port Serono

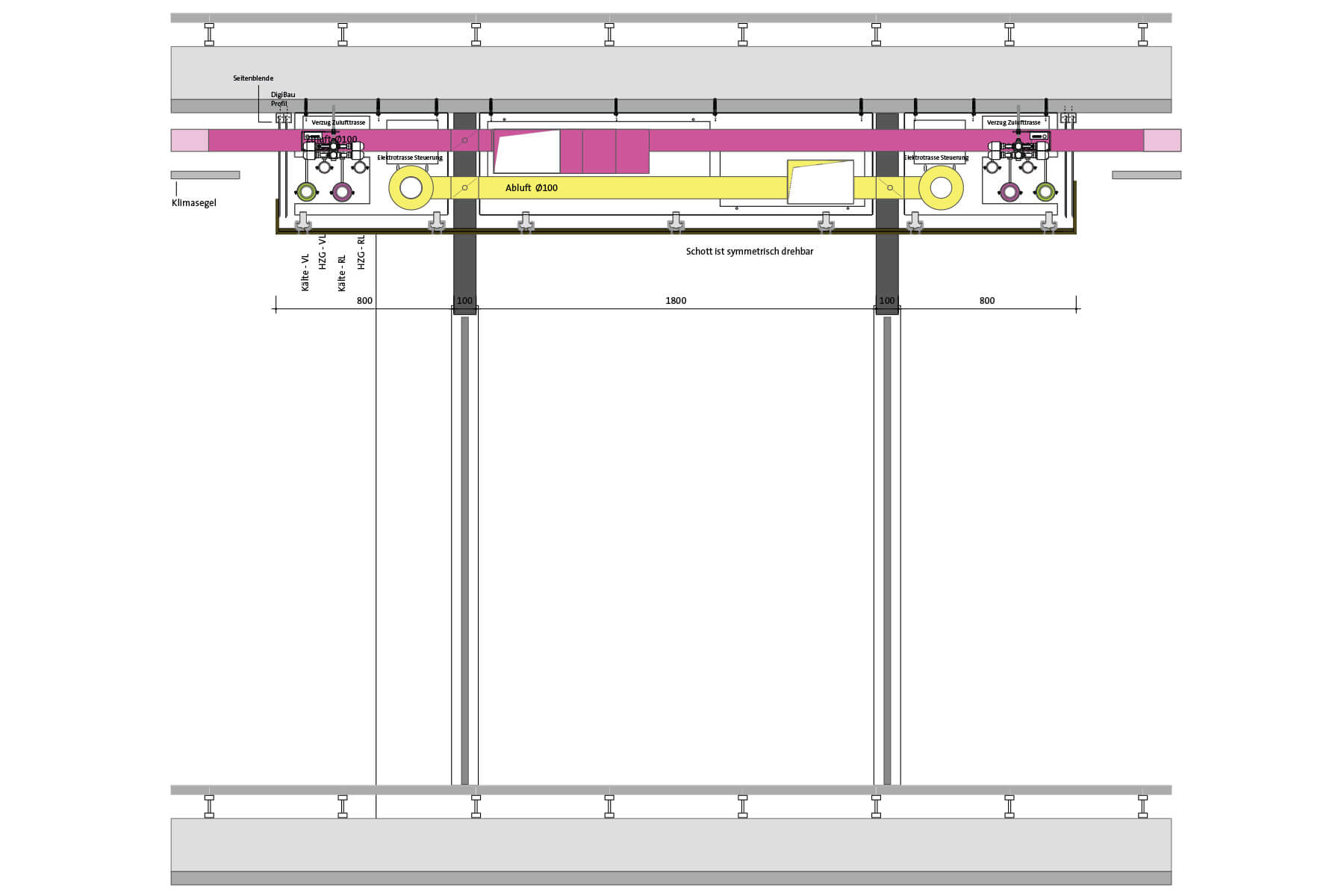

Ceiling Utility Routes Section

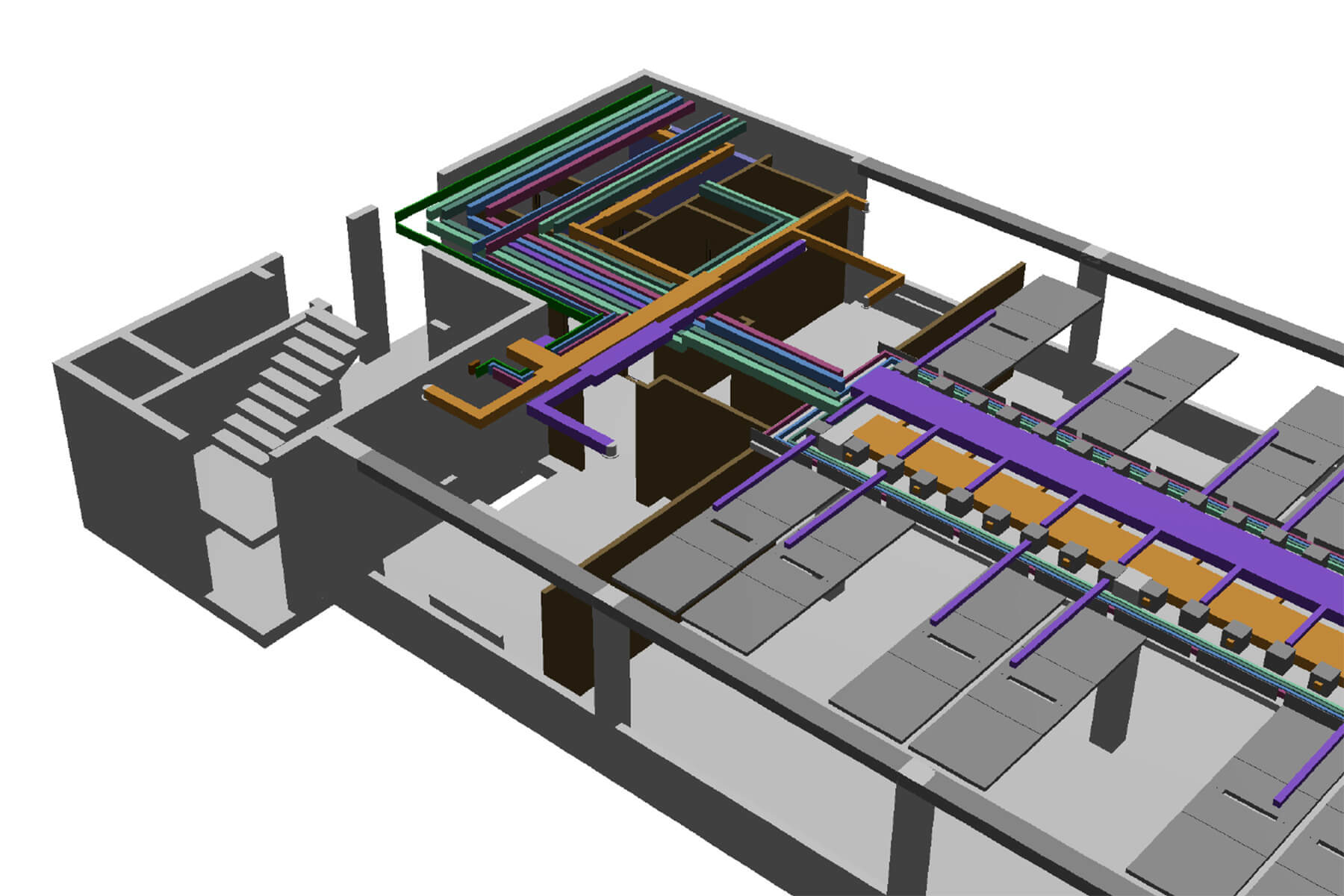

3D Visualization

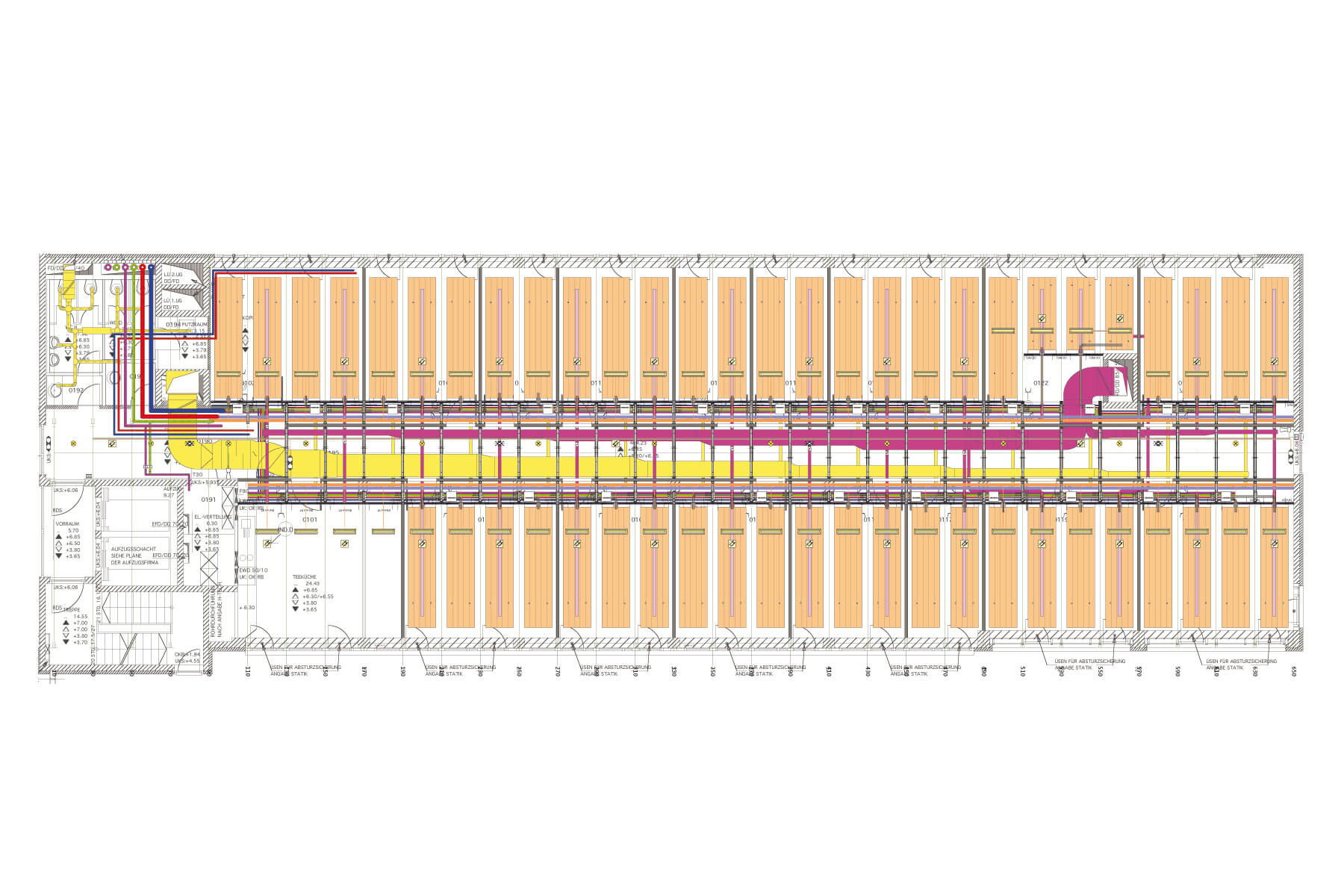

Engineering Drawing Support System

Computer Aided Manufacturing CAM

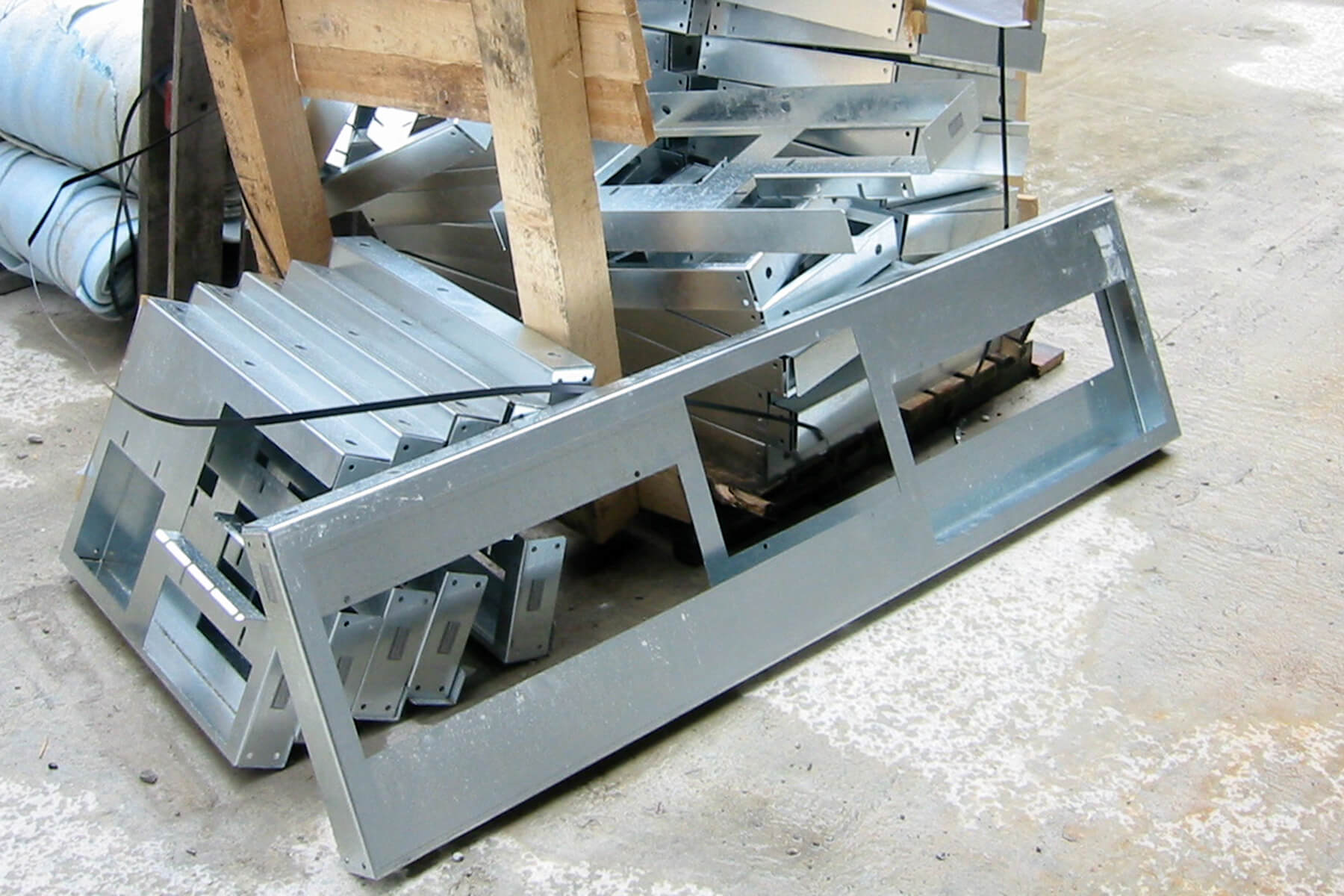

Delivery of Support System Components

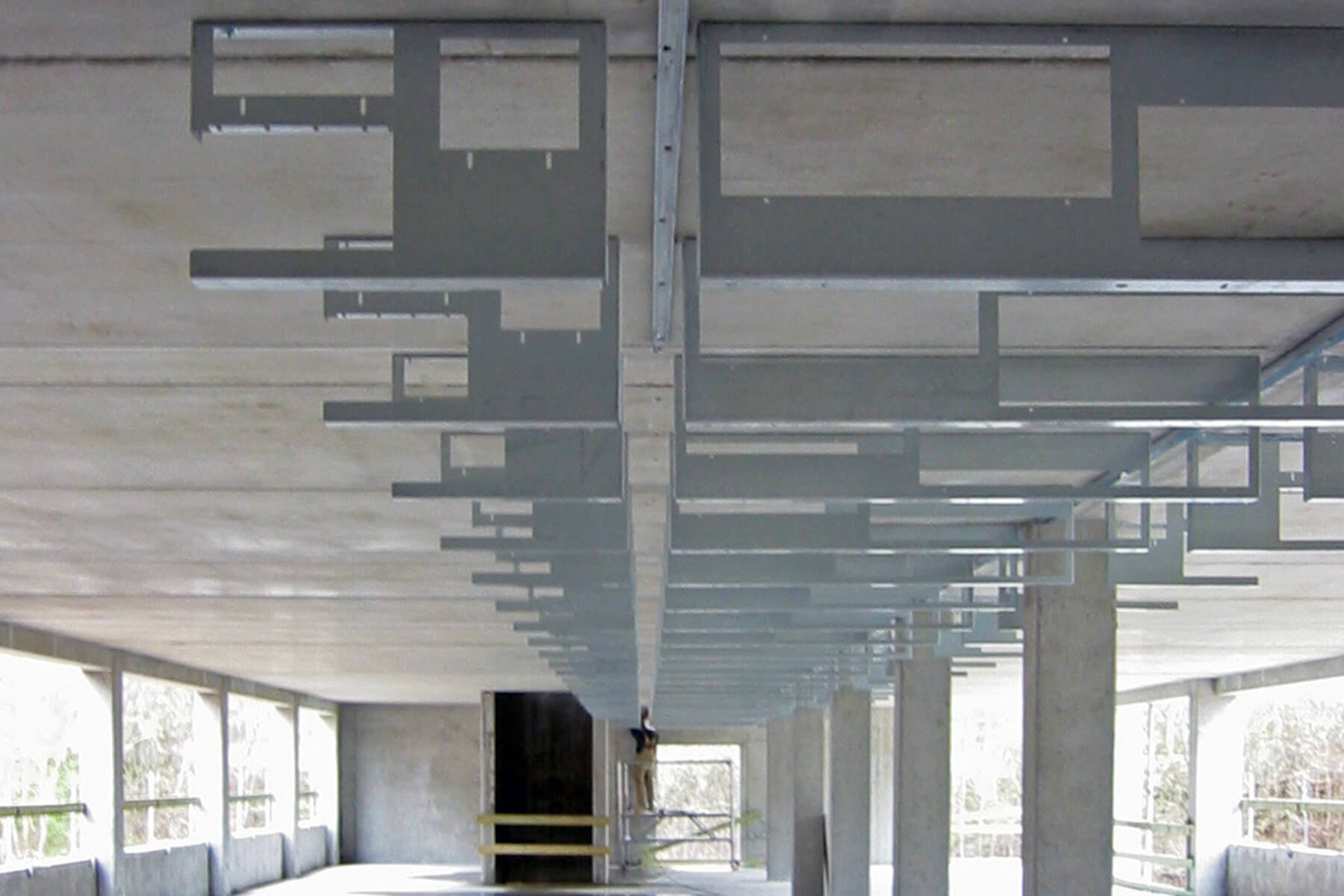

Positioning and Installation assisted by Surveyor

Installation

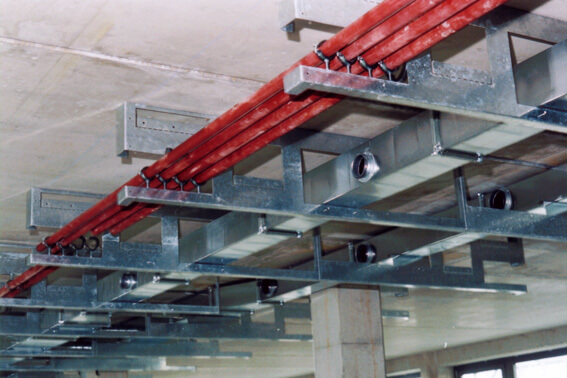

Ceiling with Cooling System and Lighting
